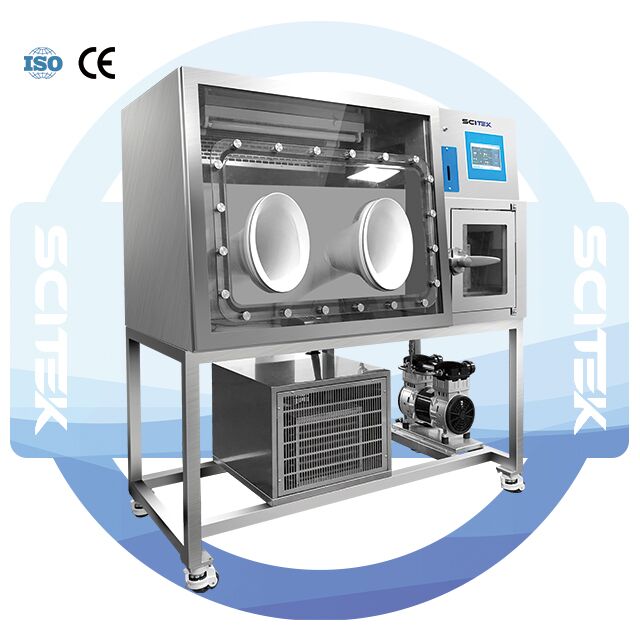

| Model | ICB-3AS | ICB-3ASR | ICB-3ASP |
|---|---|---|---|
| Time for Creating Anaerobic State in Sample Chamber | ≤15 minutes | ||
| Time for Creating Anaerobic State in Operation Chamber | ≤1.5 hours, O2 content in the operating room ≤ 0.3% | ||
| Operating Room and Sampling Room form An Anaerobic Mode of Operation | One click automatic execution | ||
| Temperature Range | RT+3 to 60°C | 15 to 60°C | RT+3 to 60°C |
| Temperature Stability | <±0.3℃ | ||
| Temperature Uniformity | <±1℃ | ||
| Display Resolution | 0.1℃ | ||
| Anaerobic Grade | Operating room O2 content ≤ 0.1% (without palladium catalyst) | ||
| Operating room O2 content ≤ 0.01% (with palladium catalyst) | |||
| Sampling Room Forms Anaerobic (Microaerophilic) Mode | Vacuum+gas displacement type (99.99% N2 or a mixture of 5% H2 + 10% CO2 + 85% N2) | ||
| Vacuum+gas displacement type (99.99% N2 or a mixture of 5% O2 + 10% CO2 + 85% N2) | |||
| Operating Room Forms Anaerobic (Microaerophilic) Mode | Gas displacement type (99.99% N2 or a mixture of 5% H2 + 10% CO2 + 85% N2)+microflow control | ||
| Gas displacement type (99.99% N2 or a mixture of 5% O2 + 10% CO2 + 85% N2)+microflow control | |||
| Sterilization Method | 1500 | 2300 | 1500 |
| O2 Concentration Display Range | 0~21% | ||
| CO2 Concentration Display Range | 0~20% | ||
| CO2 Concentration Control Range | / | 0~20% | |
| Humidity Display Range | 0~100% | ||
| Gas Supply Requirement | Gas purity 99.99%, 0.05Mpa, continuous supply | ||
| Working Environment Temperature | Applicable ambient temperature: 5~35°C; Optimal ambient temperature: 15~30°C | ||
| Power Supply | AC 220/110V, 50/60Hz | ||
| Sampling Room Size (W×D×H)(mm) | 400×330×320 | ||
| Operating Room Size(W×D×H)(mm) | 910×650×600 | ||
| Cultivation Room Size(W×D×H)(mm) | 420×300×500 | ||
| Cultivate Indoor Volume（L) | 63 | ||
| External Size (W×D×H)(mm) | 1400×730×1370 | ||
| Packing Size (W×D×H)(mm) | 1540×870×1550 | ||
| G.W(kg) | 275 | 300 | 275 |
| Standard Configuration | Pressure sensor, imported O2 sensor, imported CO2 sensor, temperature sensor, imported humidity sensor, with values displayed on the same screen; USB data recording port; Two sets of 0.22 μ m replaceable HEPA high-efficiency filters. | ||
| / | Independent CO2 concentration control. | ||
