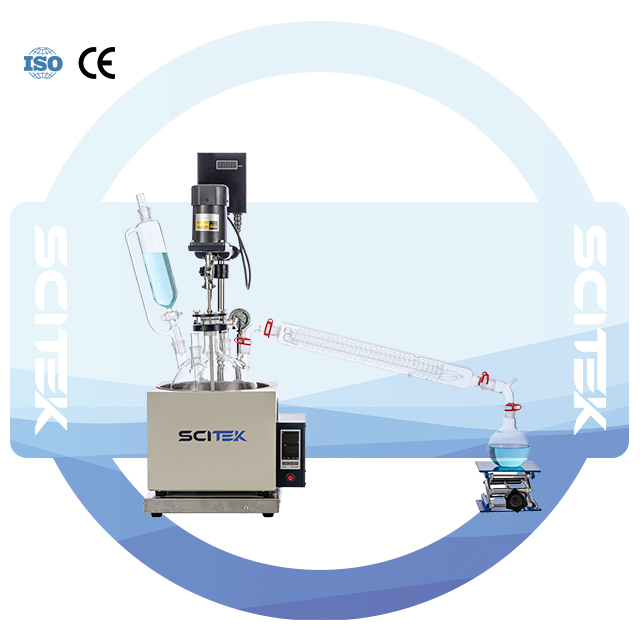

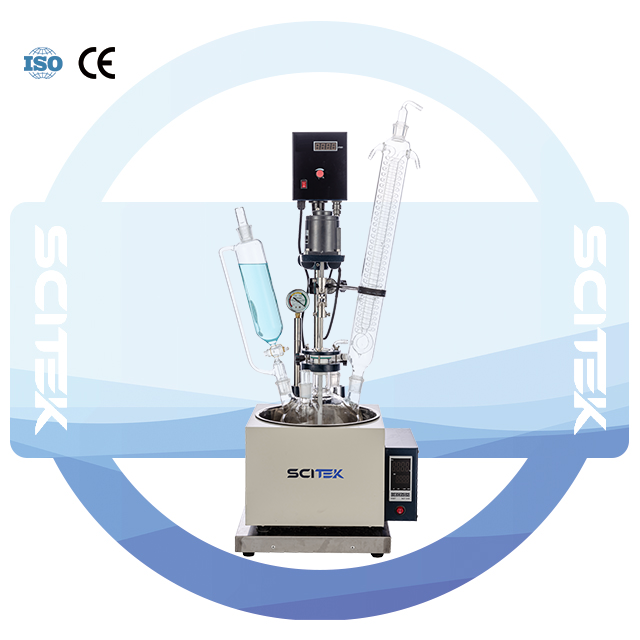

Single layer glass reactor can be used for condensation, vacuum stirring reaction, extraction and separation, reaction heat and other experiments.
This system integrates stirring, heating, condensation, and reflux. Under vacuum, solvents evaporate efficiently, condense, and return or collect for recovery.
| Model | GR-5L | |
|---|---|---|
| Reactor volume | 5L spherical shape | |
| Voltage/Frequency | 220V 50HZ/110V 60Hz | |
| Stirring motor power | 90W | |
| Heating power | 2KW | |
| Stirring speed | 0-800rpm/min | |
| Reactor temperature range | -80℃~ +250℃ | |
| Temperature measuring accuracy | ±1℃ | |
| Vacuum | 0.098Mpa | |
|
Kettle body Φ230mm 5 ports |
Stirring port | Φ50mm flange port |
| Condensation reflux port | 29# standard port | |
| Port of constant pressure funnel | 29# standard port | |
| Pressure relief port | 24# standard port | |
| Temperature measuring port | 24# standard port | |
| Stirring paddle | Φ10×530H(mm) blade 90mm | |
| Condenser | Φ60mm×450H(mm); upper 24#standard port, lower 29#standard stopper | |
| Constant pressure funnel | 500ml; upper 24#standard port with glass stopper, lower 29#standard stopper | |
| Pressure relief valve | 24#Standard plug valve, air outlet (pagoda joint) with 10mm outer diameter | |
| Temperature measuring port | 24#Standard stopper with glass temperature measuring tube | |
| Collection device | Two adapters, 24# standard port 500 spherical collection flask | |
| Vacuum nozzle | 24#Glass nozzle (pagoda joint) with 10mm outer diameter | |
| In and out circulating nozzle of condenser coil | Pagoda joint with 10mm outer diameter | |
| Bath size | Φ280×170H(mm) | |
| Overall size(W×D×H)(mm) | (430-1030)×330×1150 | |
| Net weight | 25 kg | |
| Packing size | 1020×480×520mm wooden package 0.26m³ | |
| Packing weight | 40 kg | |
