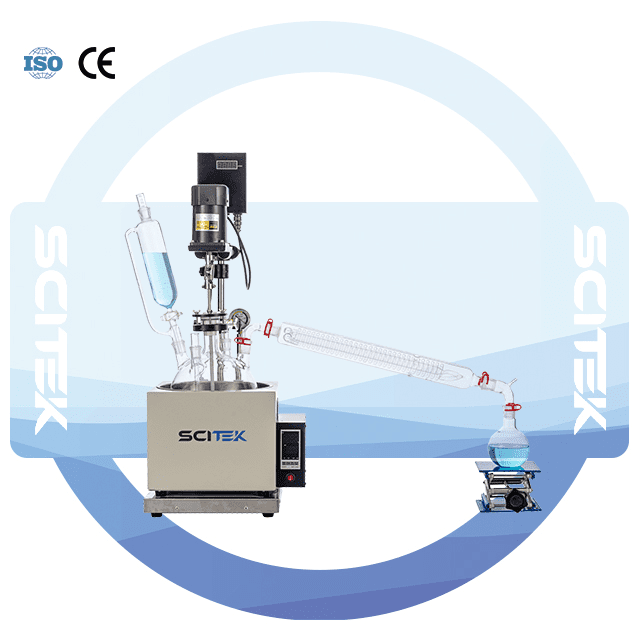

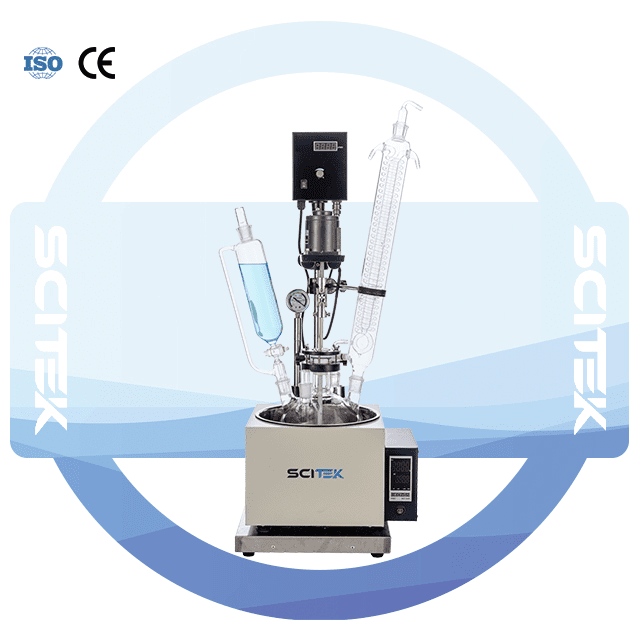

1L Single Layer Glass Reactor

This small capacity glass reactor is ideal for modern biopharmaceuticals, synthetic chemicals, and new material preparation.

Warning

/www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php

341

Single Layer Glass Reactor Feature:

Single Layer Glass Reactor Specification:

Model		GR-1L
Reactor volume		1L ball shape
Voltage/Frequency		220V 50HZ/110V 60Hz
Stirring motor power		40W
Heating power		1.5KW
Stirring speed		0-800rpm/min
Reactor temperature range		-80℃~ +250℃
Temperature measuring accuracy		±1℃
Vacuum		0.098Mpa
Kettle body Φ131mm 5 ports	Stirring port	Φ50mm flange port
	Condensation reflux port	24# standard port
	Port of constant pressure funnel	24# standard port
	Pressure relief port	19# standard port
	Temperature measuring port	19# standard port
Stirring paddle		Φ10×350H(mm) blade 80mm
Condenser		Φ40mm×350H(mm), upper 24#standard port, lower 24#standard stopper
Constant pressure funnel		250ml, upper 24#standard port with glass stopper, lower 24#standard stopper
Pressure relief valve		19#Standard plug valve, air outlet (pagoda joint) with 10mm outer diameter
Temperature measuring port		19# standard stopper glass temperature measuring tube
Collection device		Two adapters, 24# standard port 500 spherical collection flask
Vacuum nozzle		24#Glass pumping nozzle(pagoda joint) with 10mm outer diameter
In and out circulating nozzle of condenser coil		Pagoda joint with 10mm outer diameter
Bath size		Φ245×140H(mm)
Overall size(W×D×H)(mm)		(400-700)×330×900
Net weight		18 kg
Packing size		1000×460×510mm wooden package 0.23m³
Packing weight		33 kg
