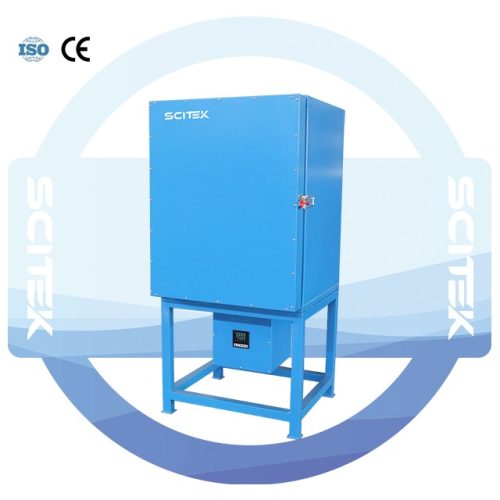

- Model : RF-50
- Temperature : 1000 ℃
- Tray Material : 304 stainless steel
- Consumption : 10.5 kW, Three-phase current.
- Temperature Control : K-type thermocouples.
- Quantity : 6 pcs with a pitch of 125 mm
-
It was used for heating during processes such as quenching, annealing and tempering. -

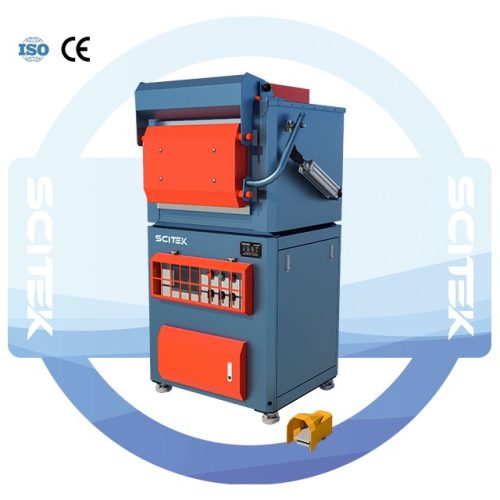

It is primarily used for refining ash in pyrometallurgical assays.- Model : CF-50; CF-100
- Electrical load: 5 AMPS
- Rated Temperature : 1200 ℃
- Temperature Control : K-Type Thermocouple
- Electrical Requirement : 10.5/35 kW Three-phase
- Taking Cupel Quantity : 50×6a/ 7a/ 7as, 100×6a/ 7a/ 7as
-

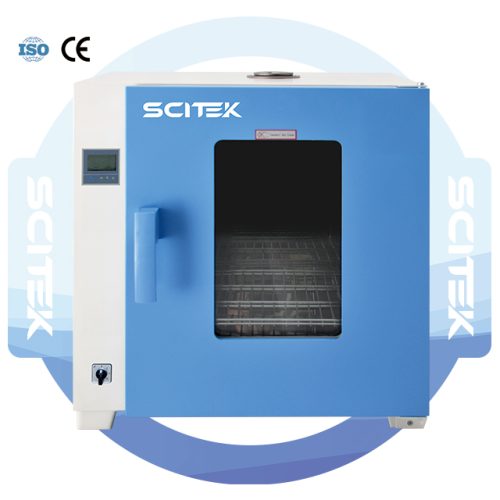

- Model : IDO-70H; IDO-140H; IDO-270H
- Capacity : 70 L/140 L/270 L
- Temperature range : 50℃~250℃
- Temperature uniformity : ≤ Max operating temperature ±3.5%
- Timer(min) : 0-9999
-

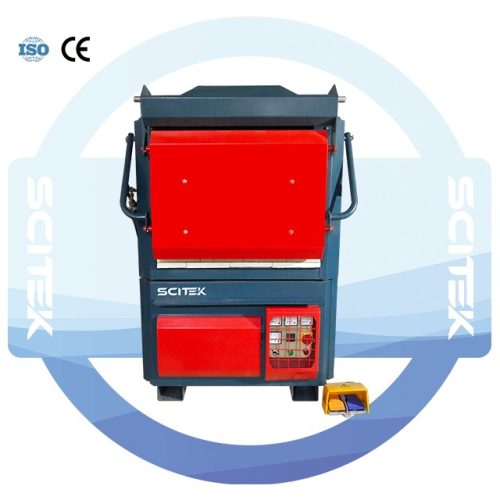

It is mainly applied to heating and melting samples in pyrometallurgical assays.- Model : FF-12; FF-25
- Rated Temperature : 1200 ℃
- Furnace Body : High-insulation refractory bricks
- Temperature Sensor : K-type thermocouple
- Electrical Requirement : 18 /40 kW Three-phase
- Taking Cupel Quantity : 12×50/65 g; 25×50/65 g; 16×30/40/55 g; 42×30/40/55 g
-

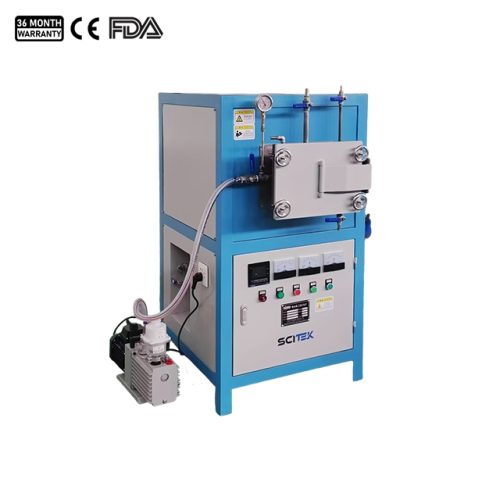

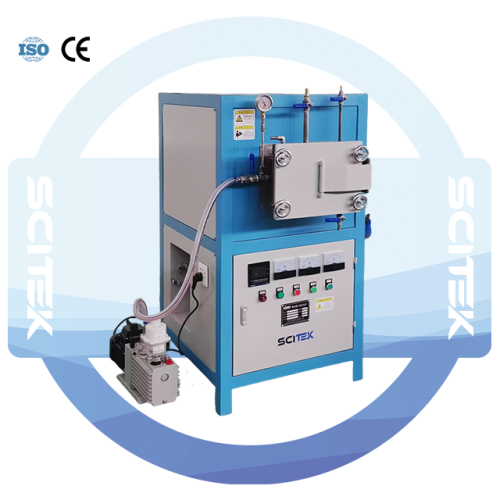

Designed for heating (sintering) products in a pre-vacuum atmosphere, and also for use without pre-vacuuming, using a protective gas washing furnace to heat products under an atmosphere.- Model : MF-10-7P
- Thermal Couple : K type
- Pre-Vacuum Degree : -0.1 MPa
- Shaking Mode : Convolution
- Flow Meter Range : 0.16–1.6 cubic meters/hour
- Short-Term Maximum Temperature : 1100 ℃
- Chamber Material : 310S high-temperature stainless steel
