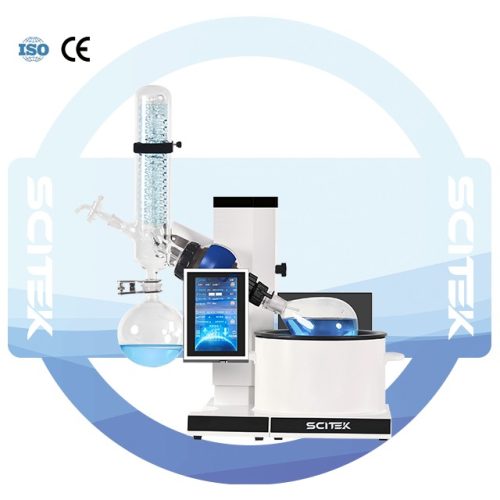

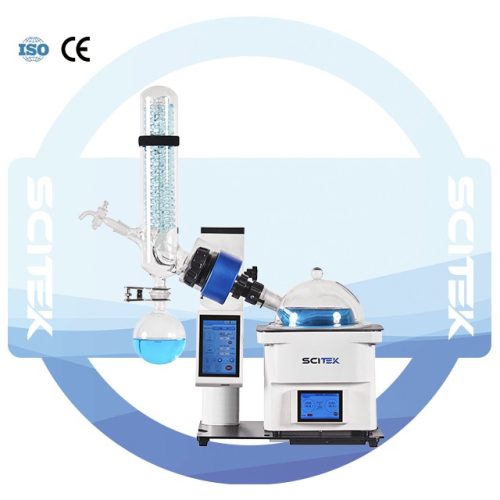

- Model : RE-1000H; RE-2000H
- Flask Capacity : 1000; 2000 mL
- Rotation Speed : 0–310 rpm/min
- Evaporation Capacity : Max. 25 mL/min
- Temperature Range : Water bath: RT–99 °C ±0.5 °C; Oil bath: RT–210 °C ±2 °C
A rotary evaporator is an essential laboratory instrument designed for the efficient and gentle removal of solvents from samples through evaporation under reduced pressure. It is widely used in fields such as chemical manufacturing, pharmaceuticals, food processing, and environmental research for concentration, purification, and solvent recovery.
-
The rotary evaporator integrates advanced functionality with user-centric design, ideal for efficient and safe solvent recovery, concentration, and distillation processes in laboratories. -

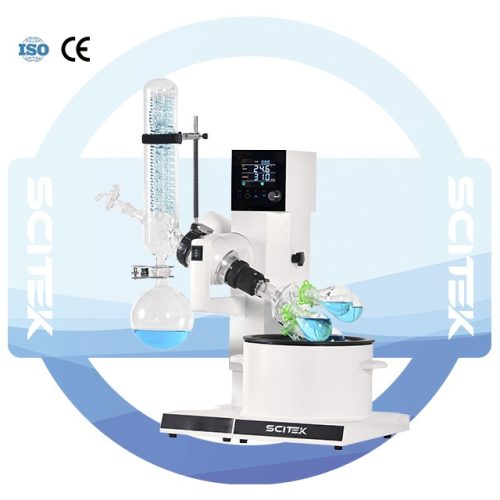

The rotary evaporator provides an efficient, safe, and versatile solution for solvent evaporation, concentration, and distillation in various laboratory applications.- Model : RE-2000M; RE-3000M; RE-5000M
- Rotation Speed : 0–310 rpm/min
- System Vacuum : 2 mbar
- Oil bath : RT–210 °C ±2 °C
- Temperature Range : Water bath: RT–99 °C ±0.5 °C
- Evaporation Capacity : Max. 25; 100; 150 mL/min
-

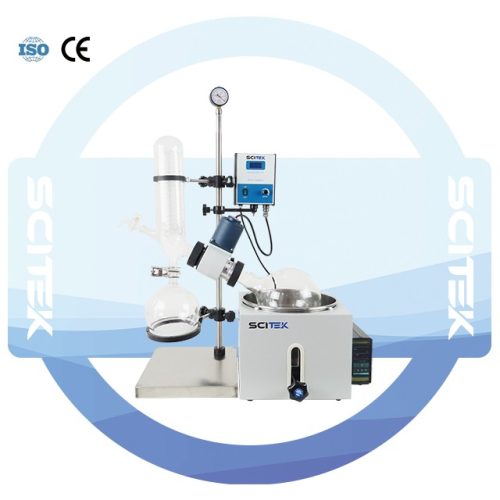

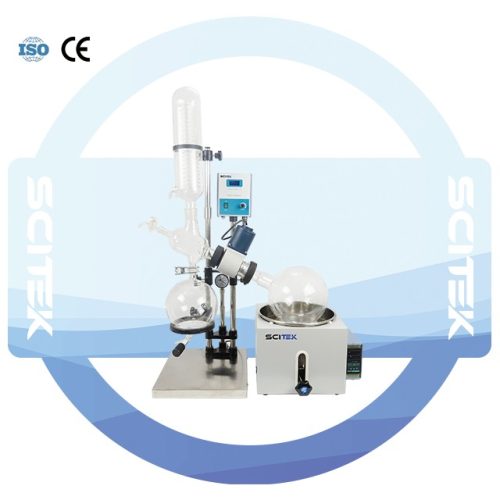

Adopting multi-layer serpentine glass condenser tubes to ensure high recovery rate.- Model: RE-301R; RE-501R
- Rotating Flask Capacity: 3 L; 5 L
- Receiving Flask Capacity: 2 L; 3 L
- Condensation Area (㎡): About 0.2; 0.27
- Maximum Evaporation Capacity (Water)(L/h): About 1.5; 2
- Rotational Speed: 0–120 rpm; 0–90 rpm
- Lifting Travel Range: 0–140 mm; 0–120 mm
-

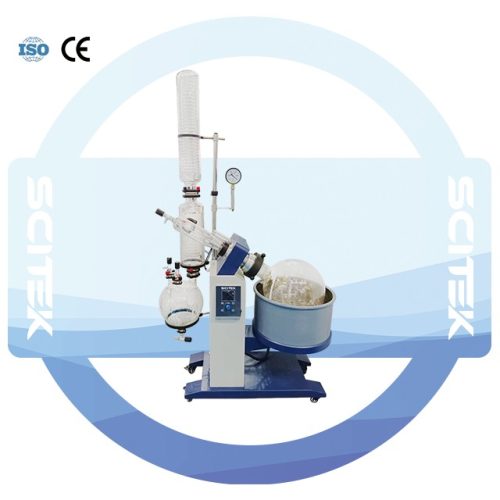

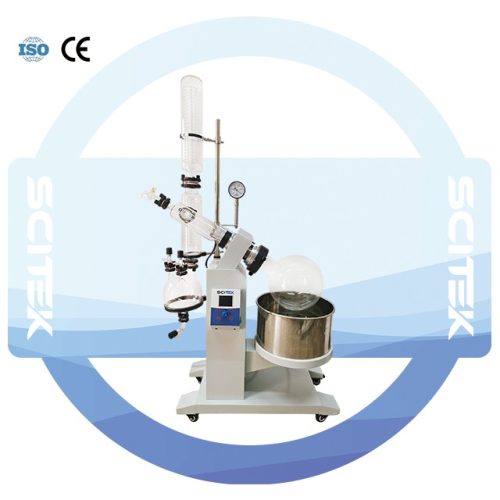

Dual-stage condensation system for enhanced cooling efficiency and improved vapor recovery.- Model: RE-5200R; RE-5220R; RE-5250R
- Rotating Flask Capacity: 10 L; 20 L; 50 L
- Receiving Flask Capacity: 5 L; 10 L; 20 L
- Condensation Area (㎡): About 0.57; 1.2; 1.5
- Evaporation Rate (Water) (L/h): 3.2; 5; 12
- Rotational Speed: 0–120 rpm; 0–90 rpm
- Lifting Travel Range: 0–180 mm
-

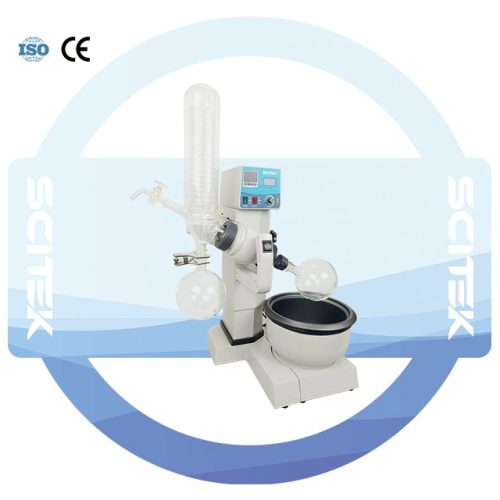

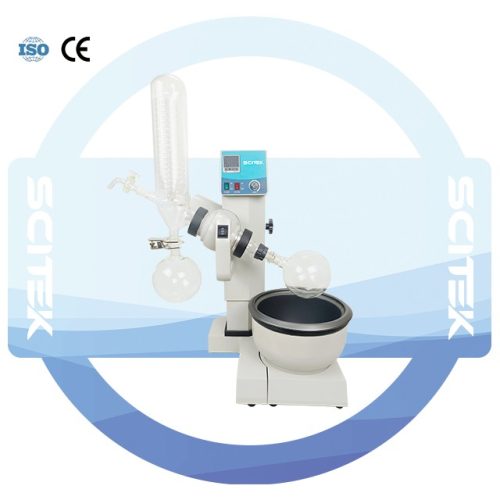

The digital display ensures higher precision for your experimental measurements.- Model: RE-2000AR; RE-2000BR; RE-2000CR
- Rotating Flask Capacity: 1 L (optional 2 L)
- Receiving Flask Capacity: 1 L (optional 2 L)
- Condensation Area: About 0.17 ㎡
- Maximum Evaporation Capacity (Water): About 0.9 L/h
- Rotational Speed: 0–200 rpm
- Lifting Travel Range: 0–150 mm
-

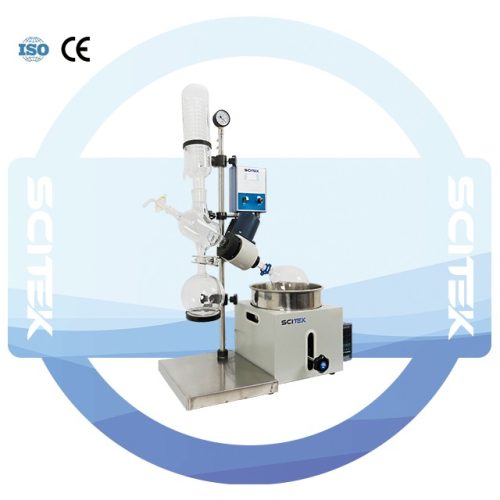

Equipped with a vacuum gauge, it can intuitively display the current vacuum level.- Model: RE-201R
- Rotating Flask Capacity: 1 L
- Receiving Flask Capacity: 1 L
- Condensation Area (㎡): About 0.12 ㎡
- Maximum Evaporation Capacity (Water): About 0.9 L/h
- Rotational Speed: 0–120 rpmLifting Travel Range: 0–140 mm
-

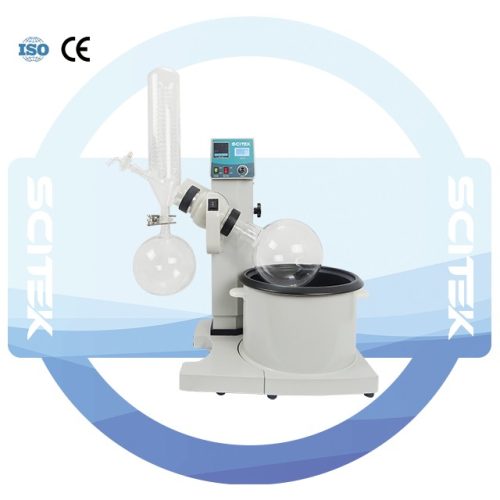

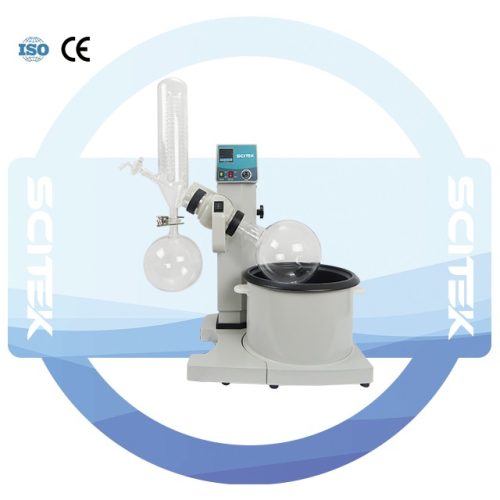

The RE-3000 series is electrically operated for elevation, making it convenient for your experimental operations.- Model: RE-3000AR; RE-3000BR; RE-3000CR
- Rotating Flask Capacity: 3 L
- Receiving Flask Capacity: 2 L
- Condenser Size (Dia.×H): 90×430 mm
- Maximum Evaporation Capacity (Water):About 1.5 L/h
- Rotational Speed: 20–200 rpm
- Lifting Travel Range: 0–150 mm
-
The electric lifting device enables the host to be lifted and lowered within the range of 0–150 mm.- Model: RE-5000R
- Rotating Flask Capacity: 5 L
- Receiving Flask Capacity: 3 L
- Condensation Area (㎡): About 0.27 ㎡
- Maximum Evaporation Capacity (Water): About 2 L/h
- Rotational Speed: 20–200 rpm
- Lifting Travel Range: 0–150 mm
-

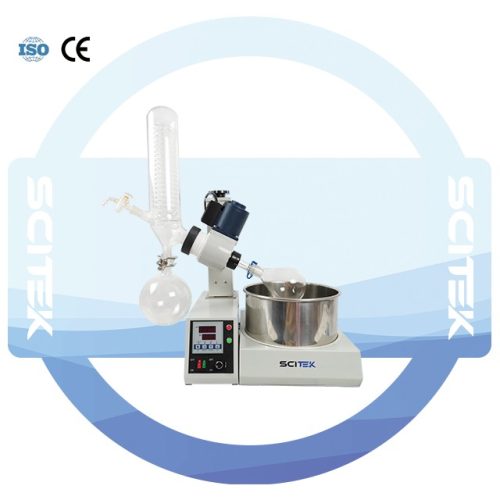

Loose Phillips screw tilt the Rotary Evaporator RE-5300R freely within the range of 0–15 degree.- Model: RE-5300R
- Rotating Flask Capacity: 500 mL
- Receiving Flask Capacity: 500 mL
- Condensation Area (㎡): About 0.17 ㎡
- Maximum Evaporation Capacity (Water): About 0.9 L/h
- Rotational Speed: 0–120 rpm
- Lifting Travel Range: 0–120 mm
-

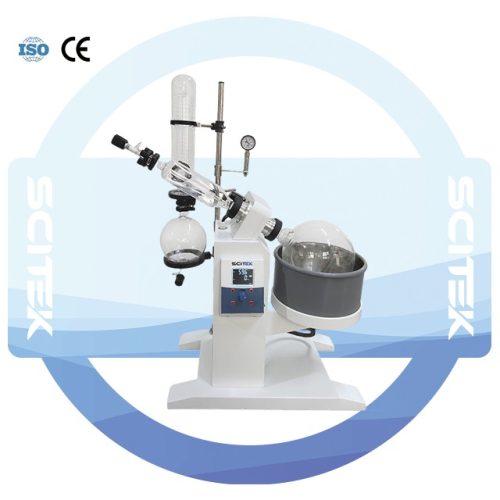

An integrated LCD screen is utilized to display temperature and rotational speed.- Model: RE-6000R
- Rotating Flask Capacity: 6 L
- Receiving Flask Capacity: 3 L
- Condensation Area (㎡): About 0.5 ㎡
- Rotational Speed: Start–120 rpm
- Lifting Travel Range: 0–150 mm
-

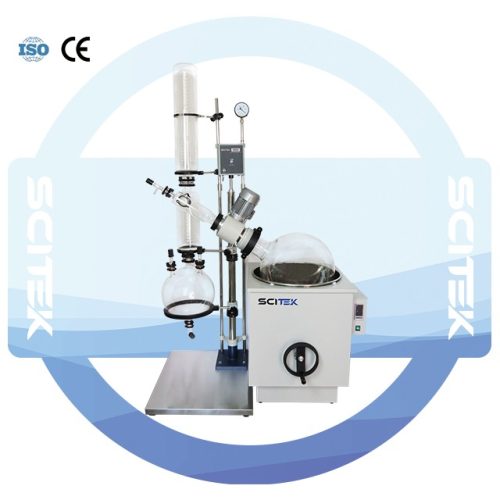

The bottom of the receiving flask is equipped with a piston, allowing quickly recovery of solvents.- Model: RE-1000R; RE-2002R; RE-3003R; RE-5005R
- Rotating Flask Capacity: 10 L; 20 L; 30 L; 50 L
- Receiving Flask Capacity: 5 L; 10 L; 20 L
- Condensation Area (㎡): About 0.57; 1.2; 1.28; 1.5
- Evaporation Rate (Water) (L/h): 3.2; 5; 9
- Rotational Speed: 0–120 rpm; 0–90 rpm
- Lifting Travel Range: 0–180 mm
-

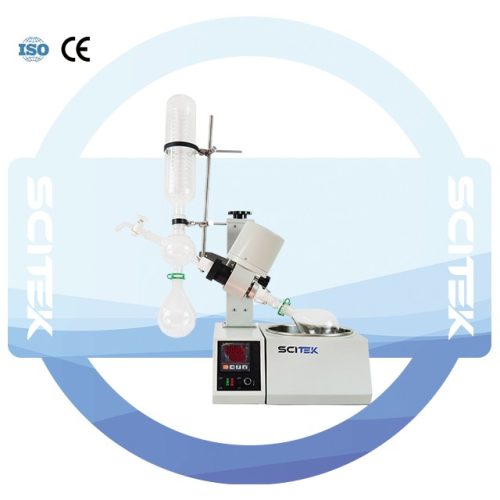

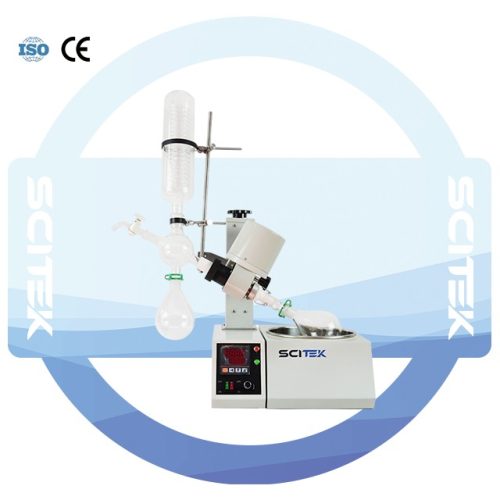

RE-50R and RE-50RC adopt loose phillips screw, allowing the host to be tilted for enhanced operational flexibility.- Model: RE-50R; RE-50RC
- Rotating Flask Capacity: 500 mL
- Receiving Flask Capacity: 500 mL
- Condensation Area (㎡): About 0.17 ㎡
- Maximum Evaporation Capacity (Water): About 0.9 L/h
- Rotational Speed: 0–120 rpm
- Lifting Travel Range: 0–120 mm
